No.

Name

Quantity

Remark

1

automatic decoiler

  １(Set)

Load: 2 tons, the inner diameter of the steel coil is 450-520mm, the outer diameter is 1200mm,  hydraulic automatically expanded

2

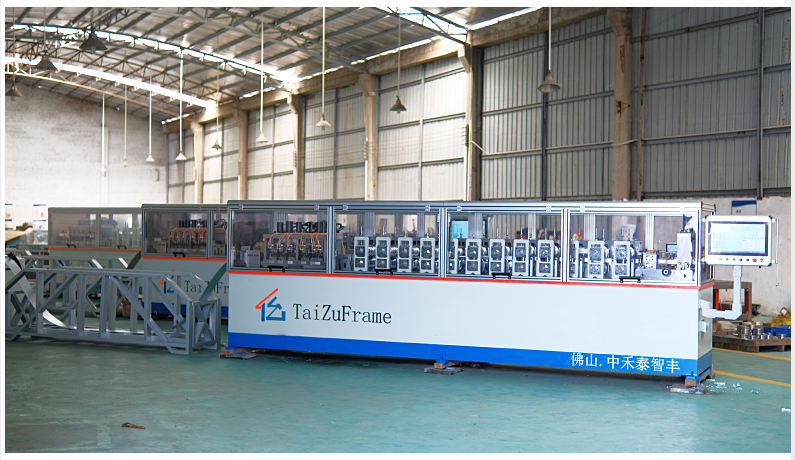

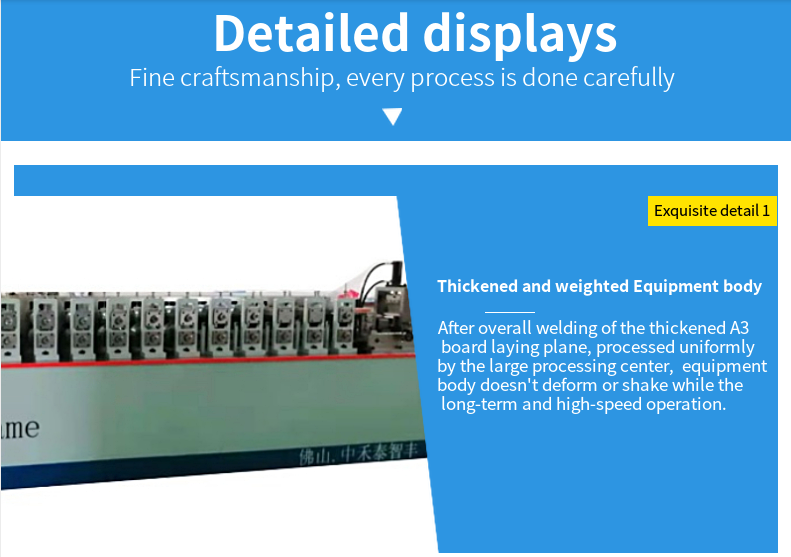

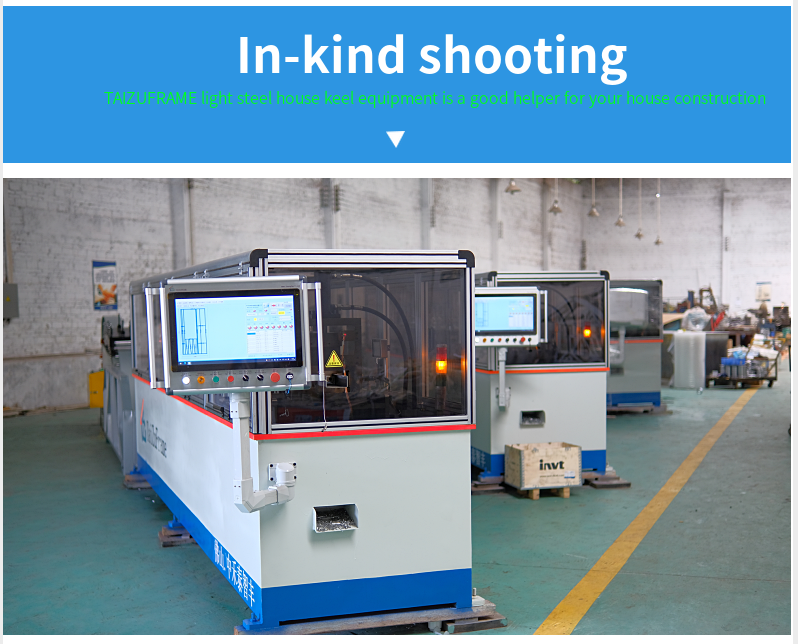

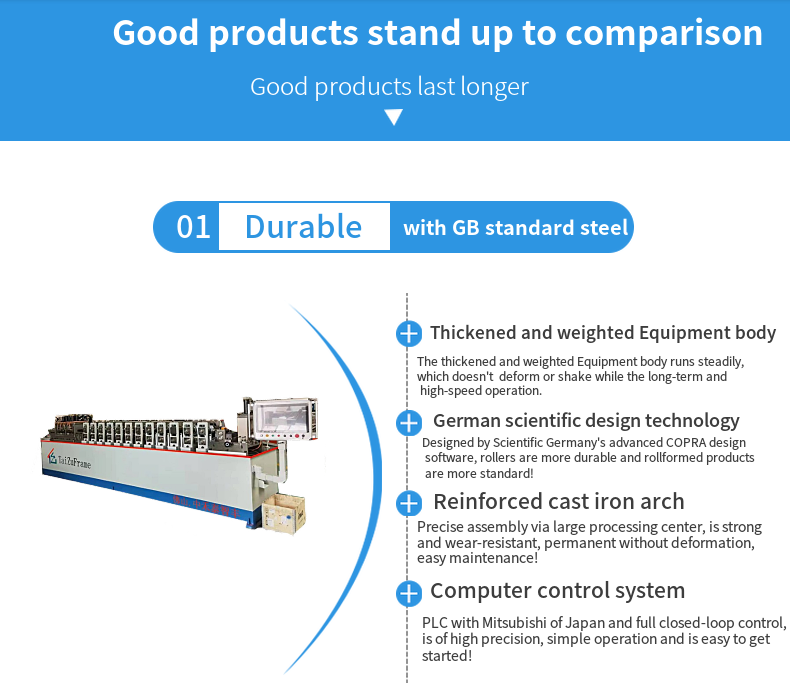

High-precise roll forming equipment

１(Set)

（1）Rollforming paths: 12 Rollforming paths to mold (including trademark molding, straightening, with rollers)

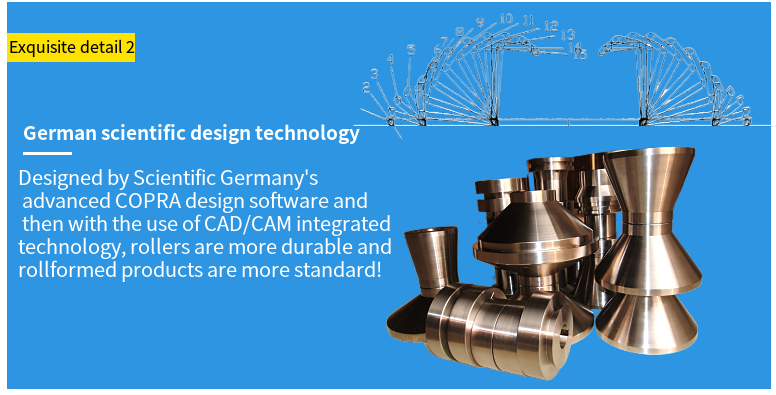

（2）Roll material is Cr12 high-quality die steel, rollers of professional scientific design, the use of CAD / CAM integration technology, through the professional mold processing software automatic programming, the design of the drawings directly downloaded to the CNC lathe finishing processing, to ensure that the roll processing accuracy and professional scientific design drawings to achieve consistency, so as to achieve the molded products with beautiful appearance and standard size. The quality of the equipment is stable.

（3）Main motor power: 5.5kw motor (Jiangmen Jiangchen)

（4）Product specifications: according to sample

（5）Material thickness: 0.25-0.6mm galvanized tape

（6）Production line speed: 80m/min

（7）Voltage 380V50HZ

（8）Hydraulic cuting

3

Fully automatic servo non-stop cut chasing

１(Set)

4

Punching mold, cutting mold

1(Set)

Cr12mov die steel

5

 Automatic baler

１(Set)

Automatic packing, stacking

6

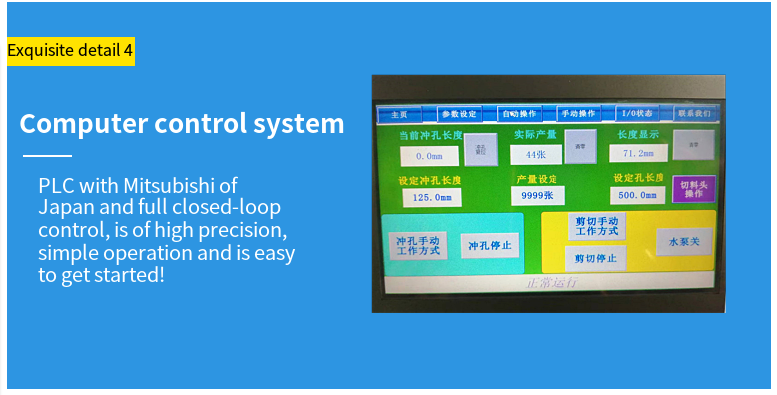

PLC computer control system

１(Set)

Mitsubishi, Japan

Production line area: length 25 meters * width 2.2 meters (including automatic baler)
