截面尺寸Section size

89*41*15*1mmC型，91*41*1U型

原材料厚度 Material Thickness

0.7-1.2mm

标准生产速度 Standard speed of production

350-900m/h

主机功率 Main machine power

高精密7.5kw伺服电机英威腾High precision 7.5kW servo motor invetion

电源要求 Power request

380V50HZ

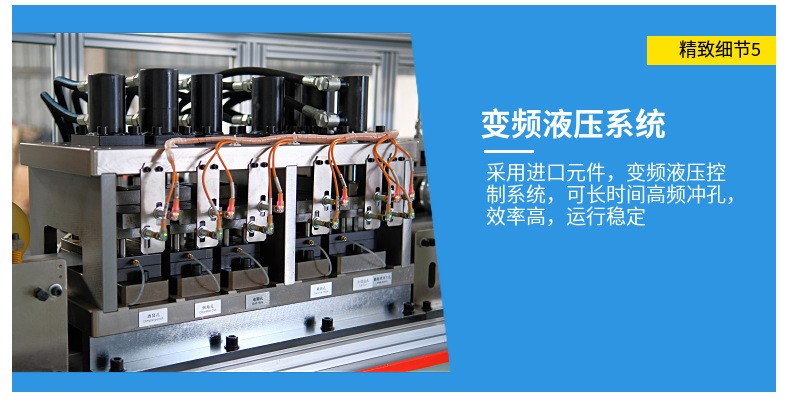

液压系统功率 Hydraulic system power

5.5kw（液压阀采用台湾东峰知名品牌，油泵采用意大利马祖奇）.The hydraulic valve adopts the well-known brand of Taiwan Dongfeng, and the oil pump adopts the Italian Mazuki）.

液压油箱容量Hydraulic tank capacity

150L

液压冷却Hydraulic cooling

标配风冷（高强度作业时可选配空调制冷）Air cooling (optional air conditioning for high-intensity operation)

配全自动连续冲模 Equipped with full automatic continuous punching die

酒窝孔、倒角孔、地脚孔、管线孔、切边孔、腹板贯穿孔、腹板缩口、翼缘孔、钉孔、刀模

产品精度+- Product precision

±0.5mm

喷码机Inkjet printer

标配Standard configuration

机器尺寸 Machine size

龙骨设备：长5200*宽1400*高1660mm

开卷校平机：长2150*宽1100*高1350mm

机器重量 Machine Weight

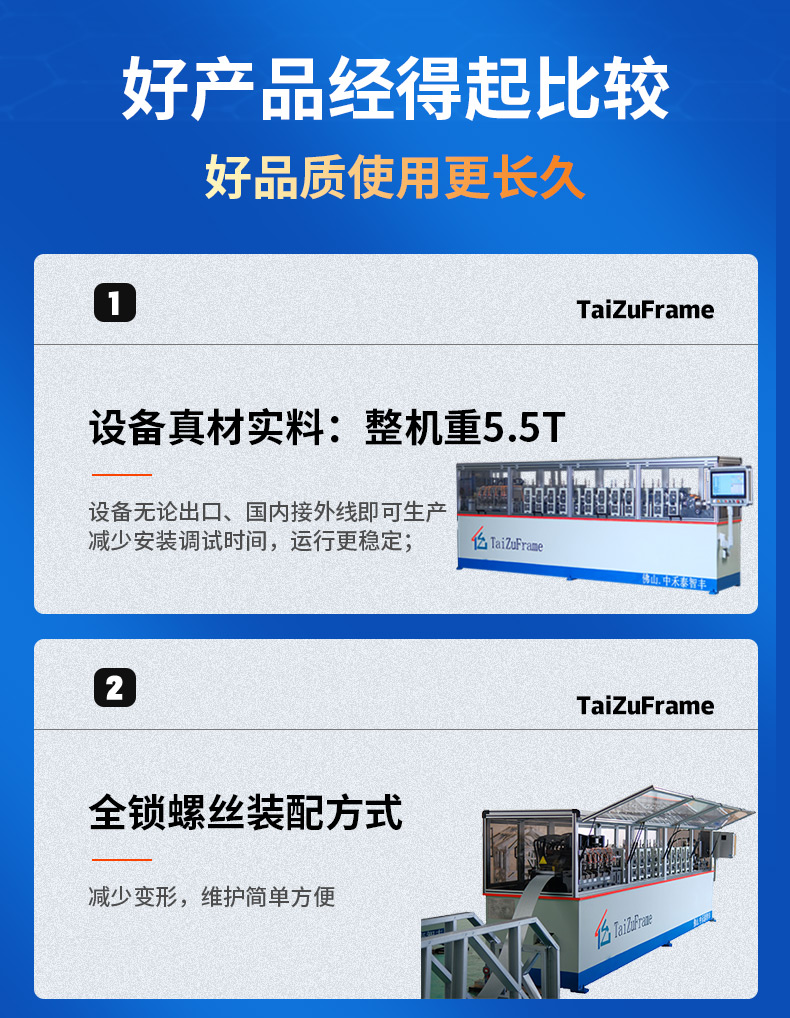

5500KG,坚固精密机型稳定性好，好用易调试.

The sturdy and precise machine is of good stability, easy usage and debugging.

开卷机 Decoiler

荷重 Load:2000KG

自动二合一液压开卷校平机 Full automatic hydraulic decoiler

机器颜色 Machine color

按我司标准 According to the standard of our company

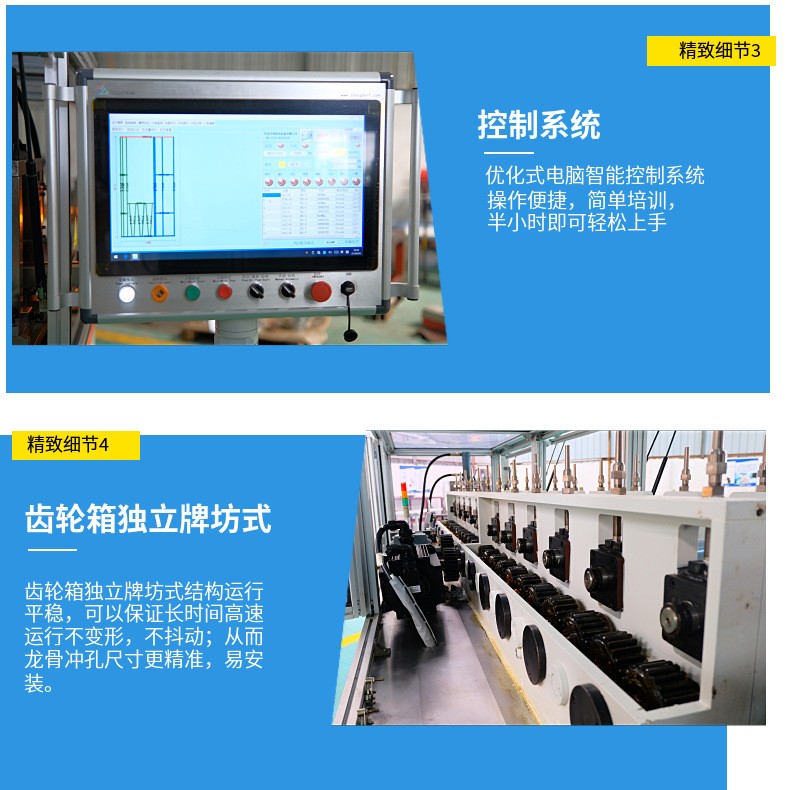

电脑控制系统 Computer control system

TAIZUFRAME全闭环控制系统，尺寸精准度高，龙骨易安装. TAIZUFRAME full closed loop control system, high dimensional accuracy, easy installation of the keel.

设计软件 Design software

可选进口知名品牌建筑设计软件Imported famous brand of building design software can be selected
