light gauge steel frame roll forming machine

light gauge steel frame roll forming machine

  • 所属分类:轻钢别墅设备
  • 浏览次数:
  • 发布日期:2022-04-21 12:05:19
  • 产品概述
  • 性能特点
  • 技术参数

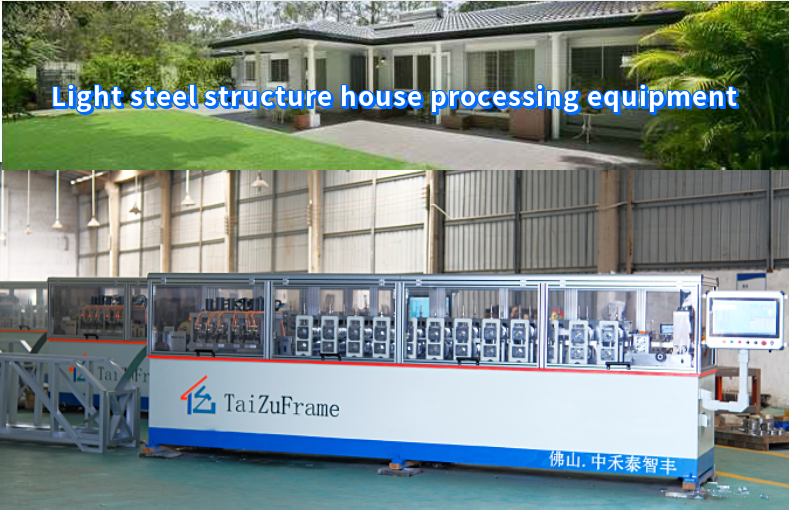

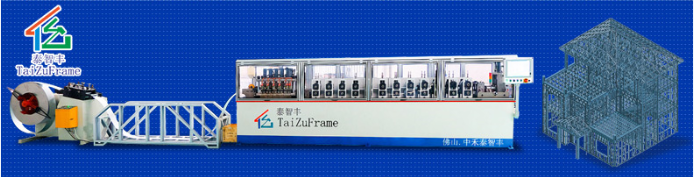

Process flow of the production line of light steel villa keel machine and light steel house keel machine:

two-in-one hydraulic automatic uncoiling machine, leveling machine,  high-speed automatic punching,

 high-speed forming, automatic spray coding, automatic cutting assembly line production, batch or single

 mode of production can be selected, the production line runs stably, efficiently and automatically.






Factory production, intelligent production of mechanical automatic assembly line, with all the screw holes,

water pipeline holes, electricity holes, anchor holes and other assembly lines processed, the on-site

 construction speed is higt.

       89设备详细参Equipment Detailed Parameters

截面尺寸Section size

89mm

原材料厚度 Material Thickness

0.8-1.2mm

标准生产速度 Standard speed of production

350-900m/h

生产速度speed of production

1600m/h

主机功率 Main machine power

高精密7.5kw伺服电机英威腾High precision 7.5kW servo motor invetion

电源要求 Power request

380V50HZ

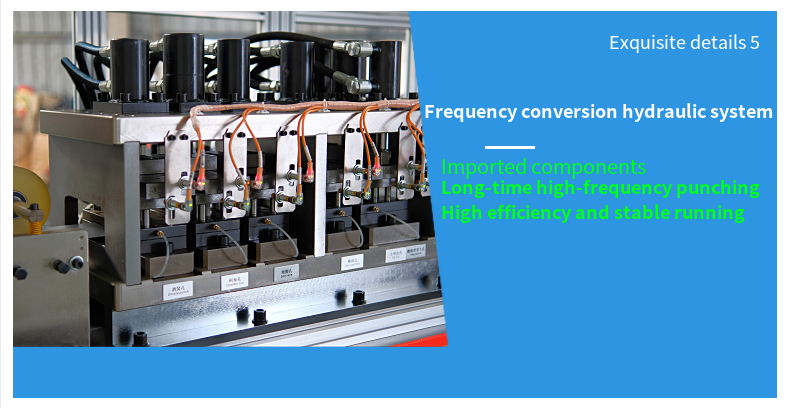

液压系统功率 Hydraulic system power

5.5kw(液压阀采用台湾东峰知名品牌,油泵采用意大利马祖奇).The hydraulic valve adopts the well-known brand of Taiwan Dongfeng, and the oil pump adopts the Italian Mazuki.

液压油箱容量Hydraulic tank capacity

150L

液压冷却Hydraulic cooling

风冷(高强度作业时可选配空调制冷)Air cooling (optional air conditioning for high-intensity operation)

配全自动连续冲模 Equipped with full automatic continuous punching die

酒窝孔、倒角孔、地脚孔、管线孔、切边孔、腹板贯穿孔、腹板缩口、刀模

Dimple hole, chamfer hole, anchor hole, pipe line hole, trimming hole,Web penetration, web shrinkage and cutter die

产品精度+- Product precision +-

0.5mm

喷码机Inkjet printer

标配Standard configuration

机器尺寸 Machine size

5200*1100*1660mm

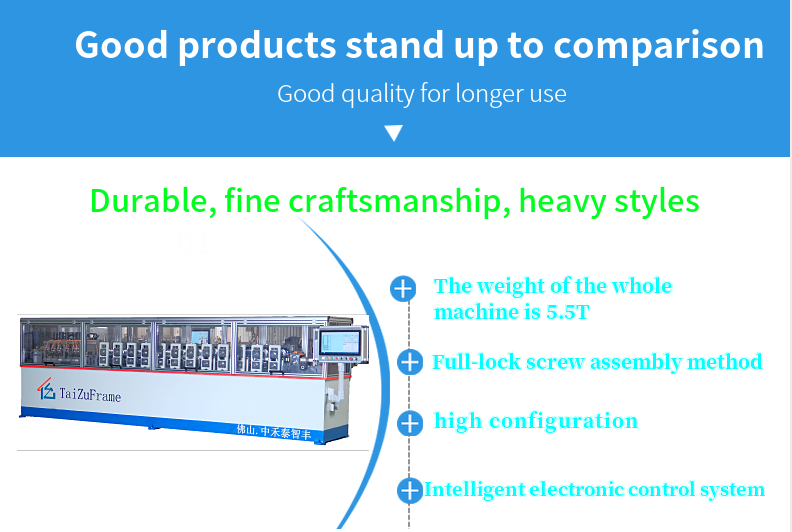

机器重量 Machine Weight

5500KG,坚固精密机型稳定性好,好用易调试.

The sturdy and precise machine is of good stability, easy usage and debugging.

开卷机 Decoiler

荷重 Load:2000KG


自动二合一液压开卷校平机 Full automatic hydraulic decoiler

机器颜色 Machine color

按我司标准 According to the standard of our company

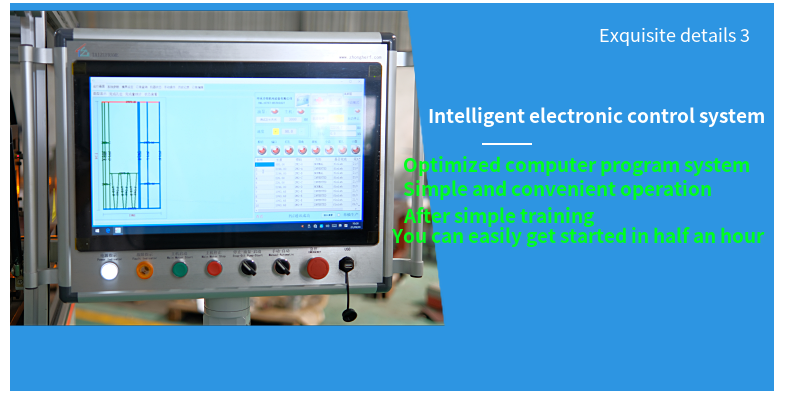

电脑控制系统 Computer control system

TAIZUFRAME全闭环控制系统,尺寸精准度高,龙骨易安装. TAIZUFRAME full closed loop control system, high dimensional accuracy, easy installation of the keel.

设计软件 Design software

可选进口知名品牌建筑设计软件Imported famous brand of building design software can be selected








Company Brief Instruction:

Foshan Zhonghe Rollforming Electromechanical Equipment Co., Ltd. Its brand TAIZUFRAME was founded in 2000. It is a company specializing in developing, designing, manufacturing and sales of intelligent light steel house keel machines, light steel villa keel machines and rollforming production lines. As an integrated modern enterprise company, it focuses on the rollforming industry for over 20 years, and has rich experience in scientific design and manufacturing. With the use of German professional rollforming software for scientific design, the advanced CAD/CAM integrated processing and production technology, the strict quality refinement process Management and multiple product testing,  the intelligent light steel villa equipment and rollforming production line products are exported to more than 50 countries and regions.

Main products: light steel house keel machine, light steel villa keel machine, prefabricated construction steel production line, keel machine, light steel keel machine, rollforming production line, antiseismic rack production line, etc.

With the tenet of "continuous innovation, dedicated to perfection", our company has focused on designing and creating light steel villa keel production lines for over 20 years. Intelligent light steel villa equipments are more efficient, stable, and better-operated equipments to create a new industry market for you! Various non-standard keel machines and building materials rollforming production lines can also be customized according to customers' requirements. Welcome to contact and visit!
